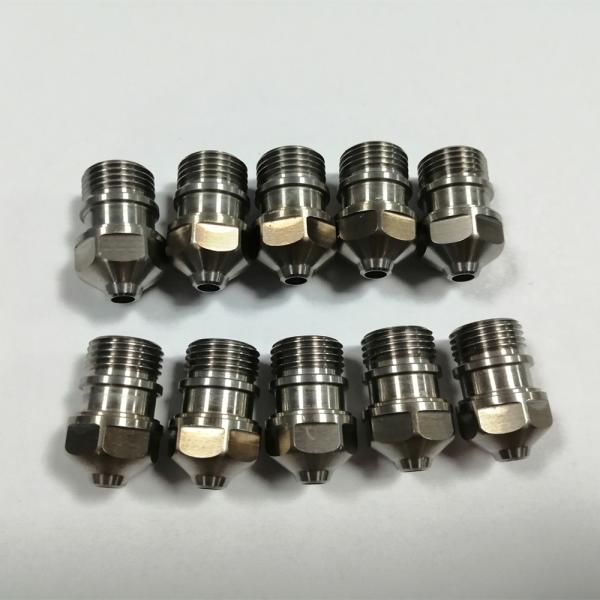

Heat Treatment H13 Die Steel Precision Mould Parts Core Insert Type
ODM Heat Treatment H13 Die Steel Mold Core Insert Components for
Edible Oil Plastic Bottle Cap
What is Core Insert Components Molding?
Core Insert Components molding is a specific case of the wider
concept of injection molding. In Core Insert Components molding,
components are inserted into the mold before injecting the molding
material, in order to form part of the final product. These
components usually consist of materials with properties different
from the parent material. A classic case is where a brass fastener
is molded into a softer parent material, in order to be used as a
structural bearing surface
Injection molding is a widely used manufacturing technique with
many advantages. The molding material sometimes lack mechanical,
chemical or electrical properties with a certain application. By
combining multiple materials into one product, an efficient
trade-off can often be achieved. This combines, for example, the
low cost of injection molding with the good mechanical properties
of a brass nut. It is a process with many advantages over injection
molding and assembly, which will be discussed in this article
The process of Core Insert Components molding differs from
conventional injection molding in that certain parts are inserted
into the mold prior to the molding material. It is very similar in
this regard to the process of over molding. The mold is designed in
such a way that makes provision for these inserts. The Mold Core
Insert Components have to be held in their respective positions
during the material injection, so as to retain the location and
orientation thereof. these Mold Core Insert Components may be
inserted into the mold by hand, or with an automated process. A
simplification of the process is shown below:
Step 1: The component is inserted onto a retainer inside the mold
Step 2: The molding material is injected into the mold, flowing
around the Mold Core Insert Components
Step 3: The product is removed from the mold, encapsulating the
Mold Core Insert Components
Specification Of Mold Core Insert Components:
| Mould Type | Plastic Injection Mould |
| Design Software | UG, ProE, Auto CAD, Solidworks, etc. |
| Hardness | 20~60 HRC |
| Mould Base | HASCO, DME, LKM etc. |
| Runner | Hot runner, Cold runner, as per customers requirement and part structure. |
| Mould Cavity | Single-cavity or Multi-cavity, as per customers requirement and part structure. |
| Heat Treatment | Quencher, Nitridation, Tempering etc. |
| Equipments | High Speed CNC, Standard CNC, EDM, Wire Cutting, Grinder, Lathe,
Milling Machine, Plastic Injection Machine |
| Lead Time | 20~60 days |
| Certificate | ISO 9000 |
Our Service:
1. Product Design
We Provide Plastic Mold Parts Design Service As Customer's Request
2. Provide The Sample
Once the sample finish, we will send the sample to customer confirm
3. Mass Production
After customer confirmed the sample, we will start mass production
plastic products
4. Assembly
We Also Provide Assembly Service For Our Customer
5. Painting&Coating
We can provide coating service for your customers
6. Packaging Carton Box
We also make the packaging box as customer request
FAQ:
Q1: Are You Trading Company Or Manufacturer?
A: We are original manufacturer. we can do OEM/ODM business
Q2: How Long Is Your Delivery Time?
A: Group buying delivery time: 30-60 days; General delivery time:
20 days
Q3: What Is Your Terms Of Payment?
A: T/T 30% as deposit, and 70% before delivery
Q4: How To Buy Your Products?
A: You can buy the products from our company directly. Normally the
procedure is sign the contract, payment by T/T, Contact the
shipping company to delivery the goods to your country
Q5: What Is The Warranty?
A: The free warranty is one year from the day of Commissioning
qualified. If there is any fault for our products within the free
warranty period, we will repair it and change the fault assembly
for free
