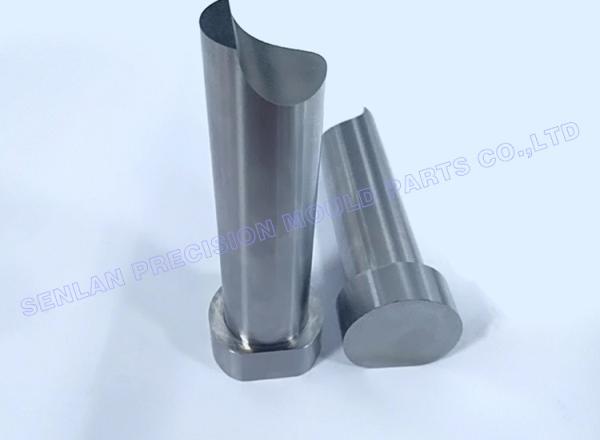

    Non - Standard Precision Molded Parts Die Casting Mould Core Pins With Cutting End

    Ask Lasest Price
    Brand Name : SENLAN
    Model Number : SL-008
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 2000pcs/week
    Delivery Time : 5-15 working days
    • Product Details
    • Company Profile

    Non - Standard Precision Molded Parts Die Casting Mould Core Pins With Cutting End

    Non - Standard Precision Molded Parts Die Casting Mould Core Pins With Cutting End


    For die casting mold parts, we use imported steel, such as 1.2344, 8407, DAC,which has good yield and tensile properties, good wear resistance, corrosion resistance and impact resistance. The use of unique surface treatment technology provides a significant product life. We are using the world's high-end testing equipment to make sure the strict QC control.We pay special attention to materials and durability of the inserts. Years of machining experiences, high-quality imported materials, advanced imported machining equipment, leading testing equipment, and perfect delivery quality management system ensure high-quality product components.


    Product Description

    Material:1.2344
    Hardness:48-52 HRC or Depend on the material
    Heat treatmentAvailable
    ServiceMade-to-order
    Surface treatmentTiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
    Closest tolerance+ - 0.005mm
    PolishnessRa0.6
    Axiality0.005mm
    Verticality0.005mm

    Main products

    SENLAN manufactures a full line of standard and customized ejector pins,punches,insert pins ,cavity pins,core pins,mold core, and other mould accessories and die parts etc.


    Equipment List

    CNCTAKISAWANEX-1080.002mm4Japan
    WEDMSODICKAQ400LS0.003mm2Japan
    CHMERG4350.005mm1Taiwan
    EDMCREATORCJ-2350.005mm4Taiwan
    Mirror EDMSODICKSodick-AM30LS0.003mm2Japan
    MAKIMOEDGE20.002mm1Japan
    Desktop latheJINGCHENGYB-150.05mm4China
    YB-250.05mm2
    OD grinderHOTMANFX-030.002mm5China
    ID grinderHOTMANFX-050.002mm3
    Centeless grinderHOTMANFX-12S0.001mm2China
    Surface GrinderSHUGUANG6140.001mm4China
    6180.001mm2
    EDM drillingZENBANGZB-030.01mm1Taiwan
    MillerTOPINRAVA0.01mm2

    FAQ

    Q. How can I get the accurate price?
    A: There are some basic specs we need to know for price calculate, that are:3D drawings in STP, IGS, X-T format are avaialble, Please suggest us your quantity too.

    Q: Are you trading company or manufacturer?

    A: We are factory.
    Q: I have an idea for a new product, but don't know if it can be manufactured. Can you help?
    A: Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your idea or design and we can advise on materials tooling and likely set-up costs.

    Q: What type of mould tool do I need?
    A Mould tools can be either single impression (one part at a time)or multi-impression(2, 4, 8 or 16 parts at a time). Single impression tools are generally used for small quantities, up to 10,000 parts per year whereas
    multi-impression tools are for larger quantities. We can look at your projected annual requirements and recommend which would be best for you.
    Q: If I've decided to go ahead with my project. How long will it take to get the trial shot sample?
    A: It will take 3-8 weeks to have the tooling manufactured which depend on the part's complexity and the number of impressions(single or multi). After the tooling is completed, you can expect delivery of trial shot samples within
    2-3 days.
